Description
Overview
COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

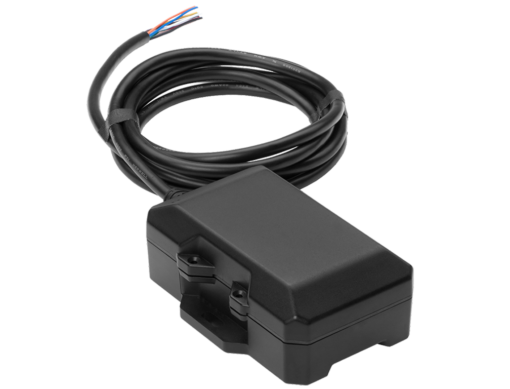

The TTU-1200 high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 3.8 Ah battery and three Inputs/Outputs (I/O). The TTU-1200 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GPRS, CDMA and HSPA cellular networks for installation in any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the TTU-1200 mountable virtually anywhere in the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The TTU-1200 is designed to dramatically reduce cost of ownership, power and size while providing excellent field reliability.
FLEXIBILITY
The TTU-1200 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined, exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.
OVER-THE-AIR SERVICEABILITY
The TTU-1200 also leverages CalAmp’s industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over the air. PULS offers out-of-the-box, hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.
Specifications
Communication Modes
GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS
Location Technology
50 channel GPS
Operating Voltage
12 and 24 volt vehicle systems
Location Technology
50 channel GPS (with SBAS) SBAS: WAAS, EGNOS, MSAS, GAGAN
Location Accuracy
2.0 meter CEP (with SBAS)
Tracking Sensitivity
-162dBm
Acquisition Sensitivity
-147dBm
AGPS Capable
Battery Capacity
3.8 amp hour
Batter Operating Voltage
3.6 volts
Battery Technology
Lithium ion
Battery Charge Time
6 hours
Data Support
SMS, GPRS, CDMA 1xRTT or HSPA packet data
Operating Bands (MHz)
GSM/GPRS:
850/900/1800/1900
CDMA/1XRTT:
850/1800
HSPA/UMTS:
800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)
Transmitter Power
GSM/GPRS:
850/900/1800/1900
CDMA/1XRTT:
850/1800
HSPA/UMTS:
All bands
HSPA Data Rates
5.6 Mbps upload/7.2 Mbps download
HSPA Fallback
EDGE/GPRS/GSM quad band EDGE MCS1-MCS9 3GPP Release 6
Digital Inputs
3 fi xed bias
Outputs
3 open collector (150mA)
Status LEDs
GPS and cellular
Temperature
-30º to +75º C (operating); -40º to +85º C (storage)
Humidity
95%RH @ 50º C non-condensing
Shock and Vibration
SAE J1455
EMC/EMI
SAE J1113; FCC–Part 15B; Industry Canada
RoHS Compliant
Operating Voltage
6-32 VDC
Power Consumption
2 mA @ 12V (deep sleep) 10 mA @ 12V (sleep on network) 70 mA @ 12V (active standby)
Dimensions
2.125 x 4.33 x 1.59”, (54 x 110 x 40.4mm)
Weight
8 oz, (226g)
SIM Access
Internal
Fully certifi ed FCC, CE, IC, PTCRB, Applicable Carriers
Standard tie-wrap or adhesive Screw mounting bracket
Features
6 months with single message cycle per day on fully charged batteries
3.8 Ah lithium ion rechargeable battery pack
IP66 sealed enclosure
Packet data (GPRS, CDMA 1xRTT, or HSPA) and SMS-based messaging GPRS
Internal GSM and GPS aAntennas
Super sensitive GPS (-162 dBm tracking)
Ultra-low power safe mode (<2mA)
3 axis accelerometer for motion sensing
3 inputs and 3 outputs
Voltage monitoring and low battery notifi cation
20,000 buff ered messages
4 built-in geo-fences
PEG™ Exception-Based Rules
Automatic, over-the-air unit con figuration on power-up (PULS™)
Over-the-air firmware download (PULS™)
Web-based device management (PULS™)
Customized hardware and software development available on request
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
| 134364-SER | Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal |
| 5C942 | Serial Programming Pigtail: 5-pin to 4-pos terminal block (use with 134364-SER), 6″ |
| 4C765 | Buzzer and Cable Assembly (use with 5C250 or 5C260), 2′ |
