Description
Overview
COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

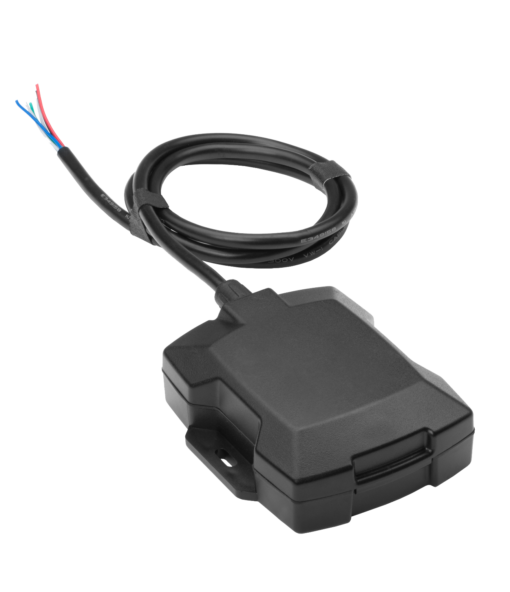

The LMU-1100 high-value tracking device from CalAmp features a small size, superior GPS performance, an internal 1000 mAh back-up battery and 2 inputs/ 1 output (I/O). The LMU-1100 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on cellular networks for installation in any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the LMU-1100 mountable virtually anywhere on or in the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-1100 is designed to dramatically reduce cost of ownership, power and size while providing excellent field reliability.
FLEXIBILITY
The LMU-1100 employs CalAmp’s advanced industry-leading on-board alert engine, PEG™ (Programmable Event Generator) to monitor external conditions and support customer-defined, exception-based rules to meet your application requirements. PEG monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.
OVER-THE-AIR SERVICEABILITY
The LMU-1100 leverages CalAmp’s management and maintenance system, PULS™ (Programming, Updates, and Logistics System), for over-the-air configuration parameters, PEG rules, and firmware. This out-of-the-box, hands-free configuration and automatic post-installation upgrades can monitor unit health status across your customers’ fleets to identify issues before they become expensive problems.
Specifications
Communication Modes
UDP packet data and SMS
Location Technology
50 channel GPS
Operating Voltage
12 and 24 volt vehicle systems
Location Technology
50 channel GPS (with SBAS) SBAS: WAAS, EGNOS, MSAS, GAGAN
Location Accuracy
2.0 meter CEP (with SBAS)
Tracking Sensitivity
-162dBm
Acquisition Sensitivity
-147dBm
AGPS Capable
Data Support
SMS, UDP packet data
Operating Bands (MHz)
GSM/GPRS:
850/900/1800/1900
CDMA/1XRTT:
850/1900
HSPA/UMTS:
800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)
Transmitter Power
GSM/GPRS:
850/900, 32.5 dBm 1800/1900, 29.3 dBm
CDMA/1XRTT:
850, 24 dBm; 1900, 23 dBm
HSPA/UMTS:
All bands, 23 dBm
HSPA Data Rates
5.6 Mbps upload/7.2 Mbps download
HSPA Fallback
EDGE/GPRS/GSM quad band EDGE MCS1-MCS9 3GPP Release 6
Inputs
2
Outputs
1 relay driver (150mA)
1-Wire® Interface
1
Status LEDs
GPS and cellular
Temperature
-30º to +75º C (operating); -40º to +85º C (storage)
Humidity
95%RH @ 50º C non-condensing
Shock and Vibration
U.S. Military Standards 202G and 810F, SAE J1455
EMC/EMI
SAE J1113; FCC–Part 15B; Industry Canada
RoHS Compliant
Operating Voltage
6-32 VDC
Power Consumption
<2 mA @ 12V (deep sleep) <10 mA @ 12V (sleep on network with SMS) <20 mA @ 12V (sleep on network with GPRS) <70 mA @ 12V (active standby)
Dimensions
2.5 x 3.125 x 0.875”, (63.5 x 80 x 23mm)
Weight
3 oz, (85g) (internal)
Connection Type
Molded power and I/O harness
SIM Access
Internal
Fully certifi ed FCC, CE, IC, PTCRB, Applicable Carriers
Tie-wrap, adhesive, or Velcro Screw mounting bracket
Features
UDP and SMS messaging
Water resistant
Internal cellular and GPS antennas
Super sensitive GPS (-162 dBm)
Internal back-up 1000mAh battery
Ultra-low power sleep mode (<2mA)
3-axis accelerometer for motion sense and tilt
Voltage monitoring and low battery noti fication
2,000 buff ered messages
10 built-in geo-fences
PEG™ exception-based rules
Automatic, over-the-air unit con guration on power-up (PULS™)
Over-the-air firmware download (PULS™)
Web-based device management (PULS™)
Temperature sensing via 1-wire protocol
Serial cable
Customized hardware and software development available on request
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
| 134364-SER | Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal |
| 5C940 | Serial Programming Pigtail (use with 134364-SER), 6″ |
| 134385 | Temperature Sensor: 1-bit Bus, 4 leads, splice in. |
| 4C765 | Buzzer and Cable Assy (use with 5C250 or 5C260), 2′ |
