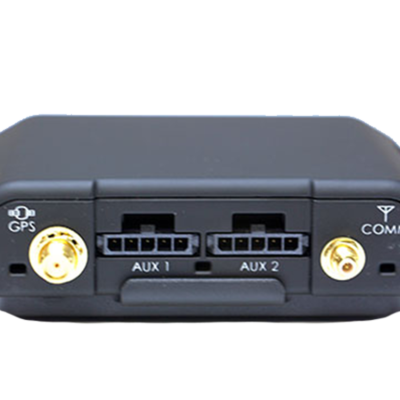

CalAmp LTE LMU-4200 Series

$197.00$277.00

A Full-Featured Telematics Gateway Built for Optimal Flexibility

The LMU-4200 is designed to support customers needing an array of vehicle interfaces. For example, the serial ports supply switchable power at selectable voltages to ease the installation of peripheral data devices. The optional jPODTM ECU (Engine Control Unit) interface reads and transmits heavy-duty engine condition and performance data such as engine temperature along with the fault codes to provide the best possible real-time picture of vehicle health.

NOTE: MOUNTING BRACKET INCLUDED. 5C888 HARNESS INCLUDED ON 4230 W/O JPOD

Clear

SKU: N/A Categories: ,

Description

MARKET APPLICATIONS

  • Domestic Fleet Management.
  • Connected Vehicle Solutions.
  • Cargo Monitoring.

FEATURES

  • Built-in Motion Sensor.
  • Built-in Antenna for Easy Installation Weatherproof (IP66).
  • Extensive Power Management.
  • 2,000 Buffered Messages on Non-Rechargeable Battery.

COMPATIBLE ACCESSORIES

5C875Splice-in, 3-Wire Starter Disable Kit, with relay, 1ft
5C888Power Harness: 4-pin to 4-wire with Fuse
5C889Power Harness: 22-pin to 20-wire I/O Harness, Non-Fused, 6″
5C896Power Harness, Splice on OBII Port for Quick Connect
5C981Power Harness, LMU-42xx to MDT7-P Android Tablet
5C420Power Harness: 22-pin & 4-pin to 1-Bit Bus (2-pin), Switch/LED (4-pin), Buzzer (3-pin) and 3-wire Power Harness with Fuse, 6’4″
4C763iButton Reader and Cable Assembly (use with 5C250 or 5C260), 4′
4C764SWITCH/LED AND CABLE ASSY, 4 FT (USE WITH 5C250)
4C765Buzzer and Cable Assy (use with 5C250 or 5C260), 2′
133688Garmin 5-pin Serial Cable, Mini USB, 9′
134364-MDT12Serial Adapter: 5-pin to DE9 Male (DTE)  with Switched Power and Selectable Voltage (12V default), 1′
134364-SERSerial Programming Cable: DE9 Female (DCE) to 5-pin Universal
RM1353-TB-04Antenna: Roof Mount Antenna SMA/SMC, TriBand (Higher Accuracy Gain), 9′
IV1353-QB-02Antenna: Window Mount, SMA/SMC, QuadBand, 9′
4A729-2J4841PGF-3In-Vehicle Window Mount LTE Antenna
133568Mounting Bracket, LMU-4230×3
134385Temperature Sensor: 1-bit Bus, 4 leads, splice in.
134615-VPOD2vPOD 5-pin Serial OBDII Adapter
134615-VPOD2RvPod2R, Ext OBDII Dongle, 5pin
134938-BTBluetooth dongle
JPOD2-ACC-G1000JPOD2, EXTERNAL DONGLE, TH CONNECTOR, 5-WIRE, GEN-HW
1BF112-453443CONBattery. LI-ION, 1000MAH, 3.7V
5C354F-1VPOD2/VBU cable to be used w/LMU-4230 only
5C356-2JPOD TO J1939 9 PIN DEUTSCH TYPE I MALE AND FEMALE ROUND, DE-15 MALE, THREADED Y CABLE (CAN+1708), 2 METERS
5C909-2jPOD to J1939, Y Pass-through cable, 2 meters
5C909-5jPOD to J1939, Y Pass-through cable, 5 meters
5C909L-2jPOD to J1939, Y Pass-through cable, Low Profile, 2 meters
5C941SSERIAL CABLE ADAPTER, 5-PIN MOLEX TYPE TO 4-PIN ROUND SEALED CONNECTOR (FOR TTU-3640)
5C970-2jPOD to 6 Pin J1708 Y Cable, 2 Meter
5C971-1jPOD to J1962 Light Duty Ribbon, Extension Cable, 1 Meter (Not CAN compliant); Special Order
5C971-2jPOD to J1962 Light Duty Ribbon Extension Cable, 2 Meter (Not CAN compliant) – Spcl Order
5C971F-1vPOD Female to OBD2 Light Duty Extension Cable, 1Meter
5C972-2jPOD to J1962 CAN-only HINO Only! Y-cable, 2 Meter
5C973-2JPOD TO J1962 Y CABLE VOLVO/MACK, 2 METER
5C990-2jPOD TO J1962 Y CABLE
5C992-2Revised 5C909L cable w/type 2 (green) connectors, 500K, Deutsch 9pin, J1708 on F/G pins
5C991-2OBD extension cable – OBD compliant
5C993-2JPOD To Deutsch 9 Pin J1939 Type 2, Threaded Y Connector
5C994-2JPOD TO DEUTSCH 9 PIN J1939 TYPE 2 CONNECTOR (REPLACES 5C909L), 500K, 2ND CAN PROTOCOL ON F/G PINS, SQUARE FLANGE END
5C944-2Revised 5C909L cable w/type 2 (green) connector, 500K Deutsch 9pin, 2nd CAN protocol on F/G Pins
5C994R-22JPOD To Deutsch 9 Pin J1939 Type 2 connector
5C995OBD extension cable – OBD compliant
5C997VEHICLE DIAGNOSTIC CABLE, VOLVO 2014 AND ABOVE, 2 METERS
FOB10-BL300-G1000Bluetooth, 3-Button Keyfob (require LMU with Bluetooth)

Additional information

Weight1 lbs
Dimensions7 × 5 × 2 in
