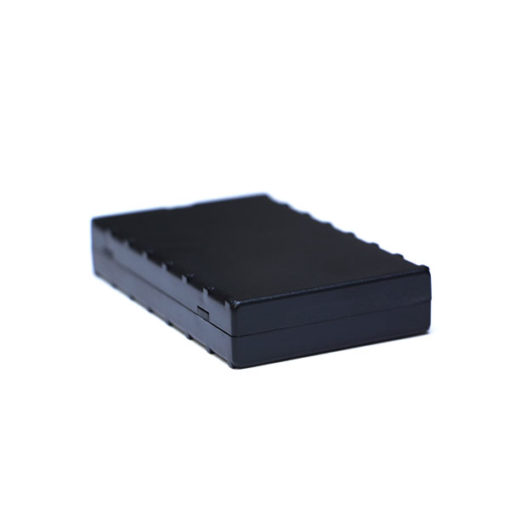

CalAmp LMU-900 Series

$81.67$125.00

The LMU-900 high-value tracking unit from CalAmp features a small size, superior GPS performance, 3-axis accelerometer for motion and tilt sense, ultra low power sleep modes, and four inputs/four outputs (I/O). The LMU-900 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GSM/GPRS/CDMA 1x RTT and HSPA cellular networks for installation in any 12 or 24 volt mobile vehicle. Internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The LMU-900 high-value tracking unit from CalAmp features a small size, superior GPS performance, 3-axis accelerometer for motion and tilt sense, ultra low power sleep modes, and four inputs/four outputs (I/O). The LMU-900 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GSM/GPRS/CDMA 1x RTT and HSPA cellular networks for installation in any 12 or 24 volt mobile vehicle. Internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-900 is designed to dramatically reduce cost, power and size while providing excellent field reliability.

FLEXIBILITY

The LMU-900 employs CalAmp’s advanced industry leading on-board alert engine, PEG™ (Programmable Event Generator) to monitor external conditions and support customer-defined, exception-based rules to meet your application requirements. PEG monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

OVER-THE-AIR SERVICEABILITY

The LMU-900 leverages CalAmp’s management and maintenance system, PULS™ (Programming, Updates, and Logistics System), for over-the-air configuration parameters, PEG rules, and firmware. This out-of-the-box hands free configuration and automatic post-installation upgrades can monitor unit health status across your customers’ fleets to identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Operating Voltage

12 and 24 volt vehicle systems

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, UDP packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1900

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900, 32.5 dBm
1800/1900, 29.3 dBm

CDMA/1XRTT:

850, 24 dBm
1800, 23 dBm

HSPA/UMTS:

All bands, 23 dBm

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Comprehensive I/O
Digital Inputs

4 fixed bias/programmable bias

Digital Outputs

4 open collector (150 mA)

Analog Inputs

1 external ADC / 1 internal VCC monitor

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

<2 mA @ 12V (deep sleep)
<10 mA @ 12V (sleep on network with SMS)
<20 mA @ 12V (sleep on network with GPRS)
<70 mA @ 12V (active standby)

Physical

Dimensions

2.125 x 3.5 x 0.625”, (54 x 89 x 16mm)

Weight

2.6 oz, (74g) (internal)

Connectors, SIM Access

Connection Type

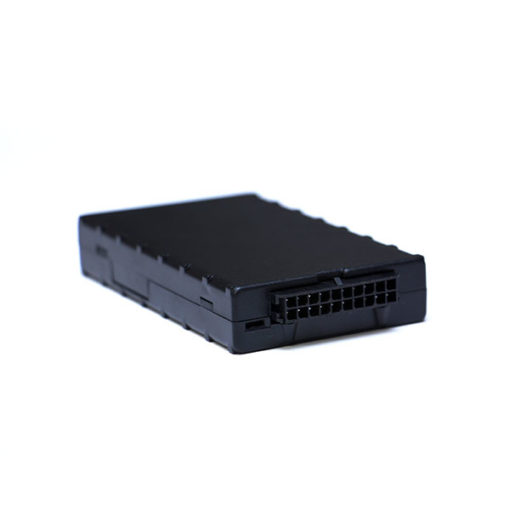

20 pin Molex-type fused power harness

SIM Access

Internal (GSM/GPRS or HSPA variant only)

GPS Antenna

External SMC (with tamper monitoring, 3 V) or internal

Cellular Antenna

External SMC or internal

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Tie-wrap, adhesive, or Velcro
Screw mounting bracket
Features
Key Features

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Super sensitive GPS (-162 dBm)

Ultra-low power sleep mode (<2mA)

3-axis accelerometer for motion sense and tilt

4 inputs and 4 outputs

Voltage monitoring and low battery notification

2,000 buffered messages

10 built-in geo-fences

PEG™ exception-based rules

Automatic, over-the-air unit configuration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions

Starter interrupt harness

OBDII easy install harness

External GPS and cellular antennas

Internal GPS and cellular antennas

External backup battery

Serial cable

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Antenna: Roof Mount Antenna SMA/SMC, TriBand (Higher Accuracy Gain), 9′
Antenna: Window Mount, SMA/SMC, QuadBand, 9′
Power Harness: 20-pin to 20-wire with Fuse, Aux-1 Serial (5-pin), Aux-2 Serial (5-pin), 8′
Power Harness: 20-pin to 3-wire with Fuse, 8′
Power harness: 20-pin with limited I/O, Fuse and Standalone Relay for Starter Kill, 6′
Power Harness: 20-pin to 8-wire Power Harness without Fused, 3′
Buzzer and Cable Assy (use with 5C250 or 5C260), 2′

Additional information

Weight0.1 lbs
Dimensions4 × 2 × 1 in
Carrier

GPRS, HSPA, Verizon

Antenna

Built-in, External
