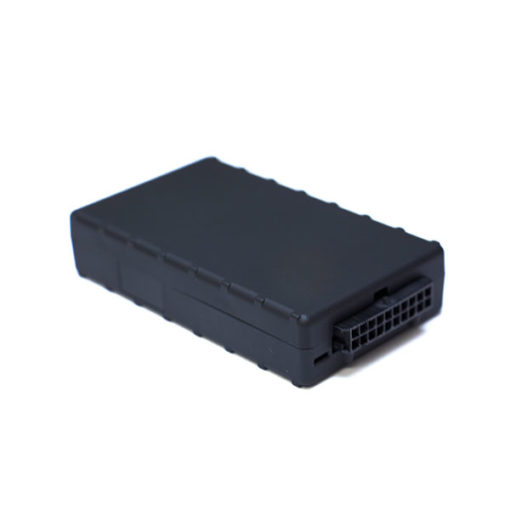

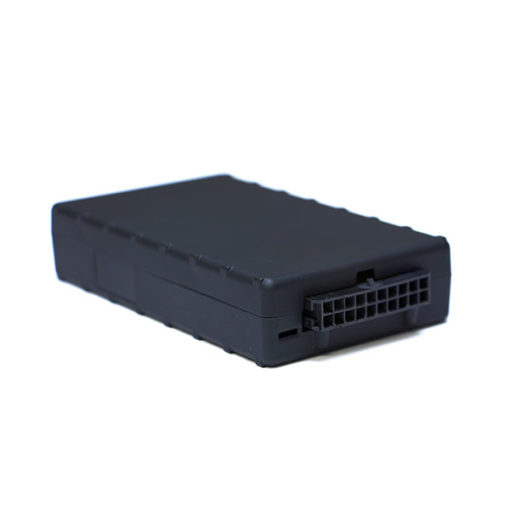

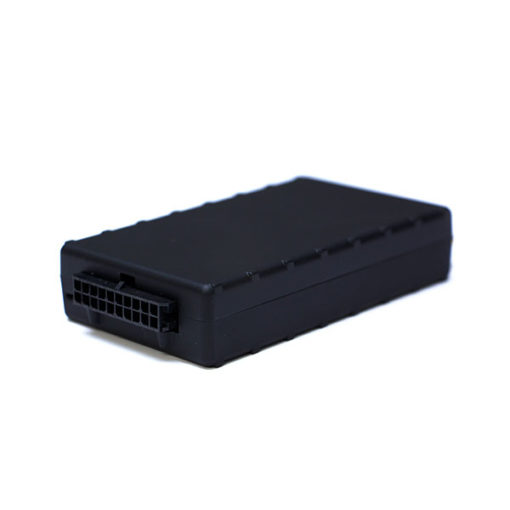

CalAmp LMU-2100 Series

$90.00$95.00

The LMU-2100 is a robust, affordable insurance device you can count on for wide range applications. The LMU-2100 incorporates GSM/GPRS, CDMA 1xRTT, or HSPA wireless communication along with extra-sensitive GPS, a powerful processing engine, and a 3-axis accelerometer that detects and acts on hard braking, aggressive acceleration, or vehicle impacts. Internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The LMU-2100 is a robust, affordable insurance device you can count on for wide range applications. The LMU-2100 incorporates GSM/GPRS, CDMA 1xRTT, or HSPA wireless communication along with extra-sensitive GPS, a powerful processing engine, and a 3-axis accelerometer that detects and acts on hard braking, aggressive acceleration, or vehicle impacts. Internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations.



FLEXIBILITY

The LMU-2100 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined, exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded. With PEG, your unique application will meet demanding customer requirements and give you a distinct advantage over your competition.



OVER-THE-AIR SERVICEABILITY

The LMU-2100 also leverages CalAmp’s industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over-the-air. PULS offers out-of-the box hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Location Technology

50 channel GPS

Operating Voltage

12 and 24 volt vehicle systems

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, GPRS, CDMA 1xRTT or HSPA packet data

GSM/GPRS Quad-Band

850/900/1800/1900 MHz

GSM/GPRS Output Power

Class 4 (2 Watts) 850/900 bands
Class 1 (1 Watt) 1800/1900 bands

CDMA Dual-Band

800/1900 MHz

CDMA Output Power

800: +24 dBm
1900: +24 dBm

HSPA/UMTS Dual-Band

900/2100 MHz (bands VIII,I)
850/1900 MHz (bands V, II)
3GPP release 6
5.6 Mbps upload, 7.2 Mbps download

GSM/GPRS/EDGE Fallback

850/900/1800/1900 quad-band GPRS class 12
EDGE MCS1-MCS9

Comprehensive I/O

Digital Inputs

1 xed bias low, 2 programmable bias

Digital Outputs

3 relay driver (200 mA)

Serial Interface

1 TTL serial

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

<3 mA @ 12V (deep sleep)
<10 mA @ 12 V (sleep on network with SMS)
<20 mA @ 12 V (sleep on network with GPRS)
<70 mA @ 12 V (active tracking)

Physical

Dimensions

2 x 4 x 0.85”, (51 x 102 x 22 mm)

Weight

74 g (external), 85 g (internal)

Connectors, SIM Access

Connection Type

Captive 10 wire fused power harness

GPS Antenna

External SMA (w/ tamper monitoring, 3V) or internal

Cellular Antenna

External SMC or internal

SIM Access

Internal (GSM/GPRS or HSPA variant only)

Certifications
Fully certified FCC, CE, IC, PTCRB, applicable carriers
Mounting
Tie-wrap, adhesive, or Velcro
Screw mounting bracket
Features
Key Features
GSM/GPRS, CDMA 1xRTT, or HSPA configurations

Internal or external cellular and GPS antenna options for easy installation

High sensitivity GPS

3-axis precision accelerometer for driver behavior and

impact detection

20,000 buffered message log

32 geo-fence capability

3 inputs/3 outputs for driver ID, temperature sensors,

and more

Power management sleep modes

Automatic, over-the-air configuration and firmware

download

Optional Features/Functions

Driver ID with 1-wire® protocol

Temperature sensing via 1-wire® protocol

Backup battery

External GPS and cellular antennas

Internal GPS and cellular antennas

NMEA data via serial

Serial cables

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Serial Programming Pigtail: 5-pin to 4-pos terminal block (use with 134364-SER), 6″
Buzzer and Cable Assy (use with 5C250 or 5C260), 2′

Additional information

Weight0.1 lbs
Dimensions4 × 2 × 1 in
Model

LMU-2120, LMU-2130

Carrier

GPRS
