CalAmp TTU-2800 Series

$125.00$179.00

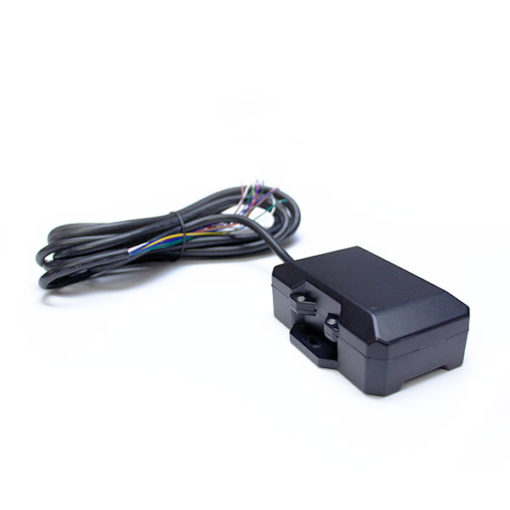

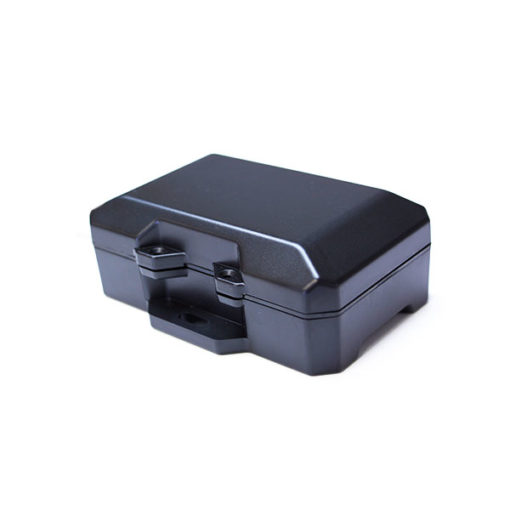

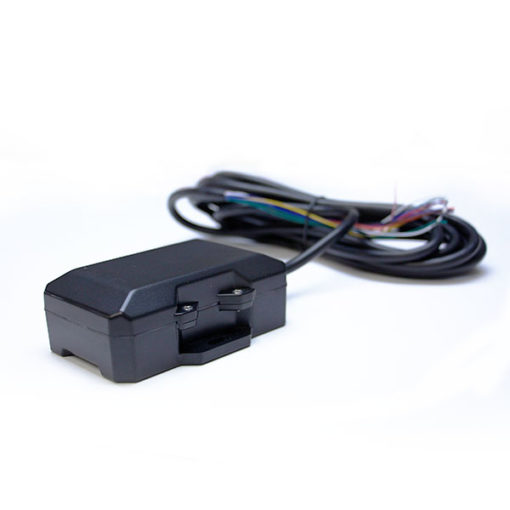

The TTU-2820 is a high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 3.8 Ah battery and three inputs/three outputs (I/O). The TTU-2800 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GPRS, CDMA 1xRTT and HSPA cellular networks for installation in or on any 12 or 24 volt mobile vehicle.

Clear

SKU: N/A Categories: , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The TTU-2800 Series is a high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 3.8 Ah battery and three inputs/three outputs (I/O). The TTU-2800 Series is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GPRS, CDMA 1xRTT and HSPA cellular networks for installation in or on any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the TTU-2820 mountable virtually anywhere on the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The TTU-2820 is designed to dramatically reduce cost of ownership, power and size while providing excellent field reliability.

FLEXIBILITY

The TTU-2800 Series employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined, exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

OVER-THE-AIR SERVICEABILITY

The TTU-2800 Sereis also leverages CalAmp’s industry-leading, over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over the air. PULS offers out-of-the-box, hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Location Technology

50 channel GPS

Operating Voltage

12 and 24 volt vehicle systems

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Batter Pack

Battery Capacity

3.8 amp hour

Batter Operating Voltage

3.6 volts

Battery Technology

Lithium ion

Battery Back-Up

3.8Ah mAh

Battery Charge Time

4 hours

Cellular

Data Support

SMS, GPRS, CDMA 1xRTT or HSPA packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900, 32.5 dBm
1800/1900, 29.3 dBm

CDMA/1XRTT:

850, 24 dBm
1800, 23 dBm

HSPA/UMTS:

All bands, 23 dBm

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Comprehensive I/O
Digital Inputs

3 (1 fixed, 2 programmable bias)

Digital Outputs

3 open collector (150mA)

Analog Input

1 External ADC input

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

8 mA @ 12V (sleep)
20 mA @ 12V (sleep on network)
60 mA @ 12V (active standby)

Physical

Dimensions

4.3 x 3.2 x 1.6”, (110 x 80 x 40mm)

Weight

9.6 oz, (272 g)

Connectors, SIM Access

SIM Access

Internal
12-wire captive harness

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Screw Mount
Magnet Mount
Tie Wrap
Features
Key Features

1 month with single message cycle per day on fully charged batteries

3.8 Ah lithium ion rechargeable battery pack

IP66 sealed enclosed

Packet data (GPRS, CDMA 1xRTT, or HSPA) and SMS-based messaging

Internal GSM and GPS antennas

Super sensitive GPS (-162 dBm tracking)

Ultra-low power safe mode (<1mA)

3-axis accelerometer for motion, hard braking/acceleration, and impact detection

3 inputs and 3 outputs

External ADC input

1-Wire™ Bus interface for temp sensor(s)

Voltage monitoring and low battery notification

20,000 buffered messages for data logging during coverage loss

32 built-in geo-fences (and 5400 vertices for polygon zones)

PEG™ exception-based rules

Automatic, over-the-air unit configuration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions

J1939 & J1708 ECU interface support

OBDII ECU interface support

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Serial Programming Pigtail: 5-pin to 4-pos terminal block (use with 134364-SER), 6″
Temperature Sensor: 1-bit Bus, 4 leads, splice in.
Buzzer and Cable Assembly (use with 5C250 or 5C260), 2′

Additional information

Weight1 lbs
Carrier

GPRS, HSPA, Sprint, Verizon

Model

2820, 2830
