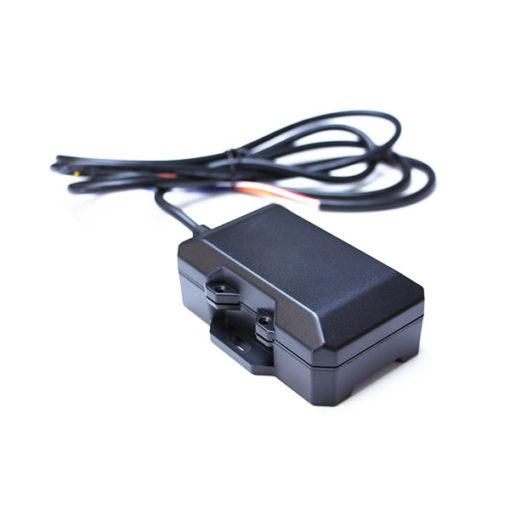

CalAmp TTU-1200 Series

$121.67$170.71

The TTU-1200 rechargeable battery pack trailer tracking product is designed for reliable, multi-year deployments. The TTU-1200 is an ideal solution for managing assets that are normally tethered to 12 or 24 volt systems but may sit idle for extended periods.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The TTU-1200 high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 3.8 Ah battery and three Inputs/Outputs (I/O). The TTU-1200 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GPRS, CDMA and HSPA cellular networks for installation in any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the TTU-1200 mountable virtually anywhere in the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The TTU-1200 is designed to dramatically reduce cost of ownership, power and size while providing excellent field reliability.

FLEXIBILITY

The TTU-1200 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined, exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

OVER-THE-AIR SERVICEABILITY

The TTU-1200 also leverages CalAmp’s industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over the air. PULS offers out-of-the-box, hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Location Technology

50 channel GPS

Operating Voltage

12 and 24 volt vehicle systems

GPS
Location Technology

50 channel GPS (with SBAS)

SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Batter Pack

Battery Capacity

3.8 amp hour

Batter Operating Voltage

3.6 volts

Battery Technology

Lithium ion

Battery Charge Time

6 hours

Cellular

Data Support

SMS, GPRS, CDMA 1xRTT or HSPA packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

All bands

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Comprehensive I/O

Digital Inputs

3 fixed bias

Outputs

3 open collector (150mA)

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

2 mA @ 12V (deep sleep)
10 mA @ 12V (sleep on network)
70 mA @ 12V (active standby)

Physical

Dimensions

2.125 x 4.33 x 1.59”, (54 x 110 x 40.4mm)

Weight

8 oz, (226g)

Connectors, SIM Access

SIM Access

Internal

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Standard tie-wrap or adhesive
Screw mounting bracket
Features
Key Features

6 months with single message cycle per day on fully charged batteries

3.8 Ah lithium ion rechargeable battery pack

IP66 sealed enclosure

Packet data (GPRS, CDMA 1xRTT, or HSPA) and SMS-based messaging GPRS

Internal GSM and GPS aAntennas

Super sensitive GPS (-162 dBm tracking)

Ultra-low power safe mode (<2mA)

3 axis accelerometer for motion sensing

3 inputs and 3 outputs

Voltage monitoring and low battery notification

20,000 buffered messages

4 built-in geo-fences

PEG™ Exception-Based Rules

Automatic, over-the-air unit configuration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Serial Programming Pigtail: 5-pin to 4-pos terminal block (use with 134364-SER), 6″
Buzzer and Cable Assembly (use with 5C250 or 5C260), 2′

Additional information

Weight0.8 lbs
Dimensions9 x 5 x 2 in
Carrier

GPRS, HSPA, Sprint, Verizon
