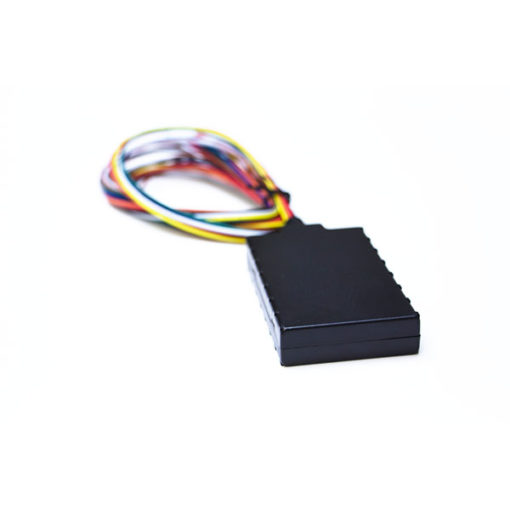

CalAmp LMU-400 Series

$96.00

The LMU-400 high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 200 mAh back-up battery, ultra low power sleep modes, optional 3-axis accelerometer for motion sense, and an integrated buzzer and starter interrupt relay.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The LMU-400 high-value tracking unit from CalAmp features a small size, superior GPS performance, an internal 200 mAh back-up battery, ultra low power sleep modes, optional 3-axis accelerometer for motion sense, and an integrated buzzer and starter interrupt relay. The LMU-400 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GSM/GPRS/CDMA 1xRTT and HSPA cellular networks for installation in any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the LMU-400 mountable virtually anywhere in the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-400 is designed to dramatically reduce cost cost of ownership, power and size while providing excellent field reliability.

FLEXIBILITY

The LMU-400 employs CalAmp’s advanced industry leading on-board alert engine, PEG™ (Programmable Event Generator) to monitor external conditions and support customer-defined exception-based rules to meet your application requirements. PEG monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

OVER-THE-AIR SERVICEABILITY

The LMU-400 leverages CalAmp’s management and maintenance system, PULS™ (Programming, Updates, and Logistics System), for over-the-air conguration parameters, PEG rules, and rmware. This out-of-the-box hands free configuration and automatic post-installation upgrades can monitor unit health status across your customers’ fleets to identify issues before they become expensive problems.

Specifications
General

Communication Modes

UPD Packet data and SMS

Location Technology

50 channel GPS

Operating Voltage

12 and 24 volt vehicle systems

GPS
Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, UDP packet data

Operating Bands (MHz)

​GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1900

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900, 32.5 dBm

1800/1900, 29.3 dBm

CDMA/1XRTT:

850, 24 dBm

1900, 23 dBm

HSPA/UMTS:

All bands, 23 dBm

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band

EDGE MCS1-MCS9

3GPP Release 6

Comprehensive I/O

Digital Outputs

1 open collector (200 mA)

Analog Inputs

1 internal VCC monitor

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

<2 mA @ 12V (deep sleep)
<10 mA @ 12V (sleep on network with SMS)
<20 mA @ 12V (sleep on network with GPRS)
<70 mA @ 12V (active standby)

Physical

Dimensions

2.1 x 3.6 x 0.77”, (53 x 96 x 19mm)

Weight

3.7 oz, (106g)

Connectors, SIM Access

Connection Type

Captive 6 wire harness

SIM Access

Internal

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Tie-wrap or adhesive
Features
Key Features

UDP and SMS-based messaging

Internal GSM and GPS antennas

Super sensitive GPS (-162 dBm)

Internal back-up 200 mAh battery

Ultra-low power sleep mode (<2mA)

Internal buzzer

Built-in starter interrupt relay

Voltage monitoring and low battery notification

2,000 buffered messages

10 Built-in geo-fences

PEG™ exception-based rules

Automatic, over-the-air unit configuration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions

3-axis accelerometer for motion sense and tilt

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
