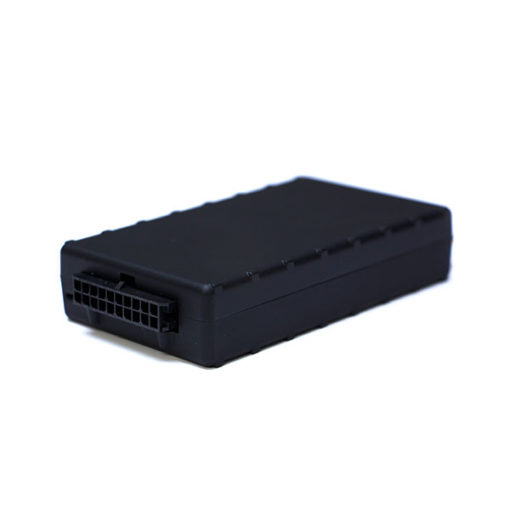

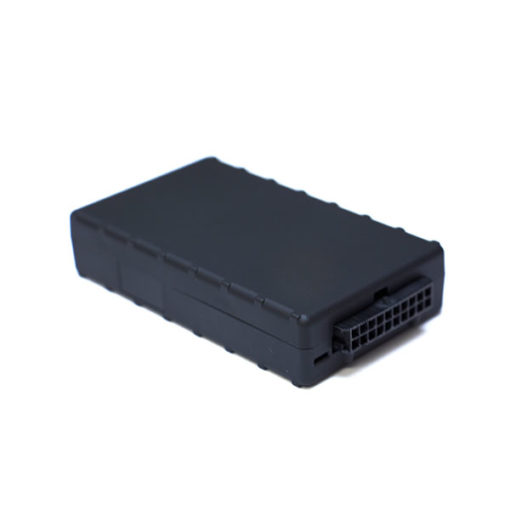

CalAmp LMU-2700 Series

$97.14$148.43

The LMU-2700 is a robust fleet device you can count on for AVL applications. The LMU-2700 incorporates GSM/GPRS, CDMA 1xRTT or HSPA wireless communication along with extra sensitive GPS technology in an affordable package. High sensitivity GPS and either internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. An integrated 1,000mAh back-up battery allows for short-term or last-gasp tracking when disconnected from main power.

Note: Need 5C909 Cable for JPOD

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The LMU-2700 is a robust fleet device you can count on for AVL applications. The LMU-2700 incorporates GSM/GPRS, CDMA 1xRTT or HSPA wireless communication along with extra sensitive GPS technology in an affordable package. High sensitivity GPS and either internal or external antenna options enables the device to be mounted virtually anywhere for easy, inexpensive installations. An integrated 1,000mAh back-up battery allows for short-term or last-gasp tracking when disconnected from main power. The LMU-2700 also features a 3-axis accelerometer to detect and act on hard braking, aggressive acceleration, and vehicle impacts.

FLEXIBILITY

The LMU-2700 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined, exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded. With PEG, your unique application will meet demanding customer requirements and give you a distinct advantage over your competition.

OVER-THE-AIR SERVICEABILITY

The LMU-2700 also leverages CalAmp’s industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over-the-air. PULS offers out-of-the box hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS
Location Technology

50 channel GPS
Operating Voltage

12 and 24 volt vehicle systems

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, GPRS, CDMA 1xRTT or HSPA packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900, 32.5 dBm
1800/1900, 29.3 dBm

CDMA/1XRTT:

850, 24 dBm
1800, 23 dBm

HSPA/UMTS:

All bands, 23 dBm

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Comprehensive I/O
Digital Inputs

Digital Inputs

5 (1 xed bias low, 4 programmable bias)

Digital Outputs

3 relay driver (200 mA)

Serial Interface

2 (1 TTL serial, 1 switched power TTL)

Analog Inputs

2 (1 internal VCC monitor, 1 external A/D input)

1-Wire® Interface

Driver ID, temperature sense

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

3 mA @ 12V (deep sleep)
10 mA @ 12 V (sleep on network with SMS)
20 mA @ 12 V (sleep on network with GPRS)
70 mA @ 12 V (active tracking)

Physical

Dimensions

90 x 54 x 20 mm

Weight

74 g (external), 85 g (internal) estimated

Connectors, SIM Access

Connection Type

20-pin Molex-type fused power harness

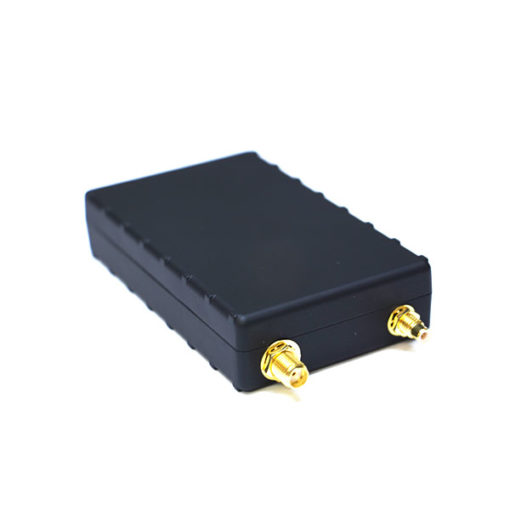

GPS Antenna

External SMA (w/ tamper monitoring, 3V) or internal

Cellular Antenna

External SMC or internal

SIM Access

Internal (GSM/GPRS or HSPA variant only)

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Tie-wrap, adhesive, or Velcro
Screw mounting bracket
Features
Key Features

Packet data (GPRS, CDMA 1xRTT, or HSPA) and SMS-based messaging

Internal or external cellular and GPS antennas

High sensitivity GPS (-162 dBm tracking)

Low power sleep modes

Internal or external cellular and GPS antennas

Internal 1000 mAh back-up battery

3-axis accelerometer for motion, hard braking/acceleration, and impact detection

Voltage monitoring and low battery notification

20,000 buffered messages for data logging during coverage loss

32 built-in geo-fences

Dual serial ports

PEG™ exception-based rules

Automatic, over-the-air unit configuration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions

Driver ID with 1-wire® protocol

Temperature sensing via 1-wire® protocol

Internal or external GPS and cellular antennas

NMEA data via serial

External A/D input

Serial cables

jPOD™ truck ECU interface

Garmin® FMI compatible interface

Piezo speaker, panic button, and privacy button

Power harness with two (2) 3A fuses

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Antenna: Roof Mount Antenna SMA/SMC, TriBand (Higher Accuracy Gain), 9′
Antenna: Window Mount, SMA/SMC, QuadBand, 9′
Power Harness: 20-pin to 20-wire with Fuse, Aux-1 Serial (5-pin), Aux-2 Serial (5-pin), 8′
Power Harness: 20-pin to 1-Bit Bus (2-pin), Switch/LED (4-pin), Buzzer (3-pin), Aux-1 5-pin Serial, Aux-2 5-pin Serial and 3-wire Power Harness with Fuse, 6′
Power Harness: 20-pin to 3-wire with Fuse, 8′
Power harness: 20-pin with limited I/O, Fuse and Standalone Relay for Starter Kill, 6′
Serial Adapter: 5-pin to DE9 Male (DTE)  with Switched Power and Selectable Voltage (12V default), 1′
vPOD 5-pin Serial OBDII Adapter, 3’4″
jPOD 5-pin Serial OBD Adapter, 18″
Garmin 5-pin Serial Cable, Mini USB, 9′
Temperature Sensor: 1-bit Bus, 4 leads, splice in.
iButton Reader and Cable Assembly (use with 5C250 or 5C260), 4′
Switch/LED and Cable Assembly  (use with 5C250 or 5C260), 4′
Buzzer and Cable Assy (use with 5C250 or 5C260), 2′
jPOD Deutsch Y-Cable

Additional information

Weight0.2 lbs
Dimensions4 x 2 x 1 in
Carrier

Aeris, GPRS, HSPA, Sprint, Verizon

Model

2720

Antenna

Built-in, External
