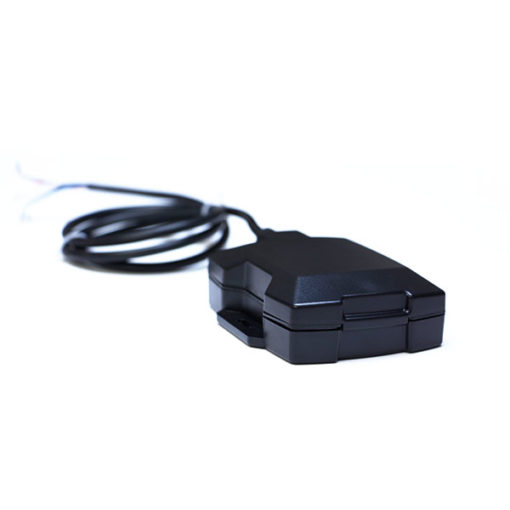

CalAmp LMU-1100 Series

$98.33$171.67

The LMU-1100 high-value tracking device from CalAmp features a small size, superior GPS performance, an internal 1000 mAh back-up battery and 2 inputs/ 1 output (I/O). The LMU-1100 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on cellular networks for installation in any 12 or 24 volt mobile vehicle.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The LMU-1100 high-value tracking device from CalAmp features a small size, superior GPS performance, an internal 1000 mAh back-up battery and 2 inputs/ 1 output (I/O). The LMU-1100 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on cellular networks for installation in any 12 or 24 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the LMU-1100 mountable virtually anywhere on or in the vehicle for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-1100 is designed to dramatically reduce cost of ownership, power and size while providing excellent field reliability.



FLEXIBILITY

The LMU-1100 employs CalAmp’s advanced industry-leading on-board alert engine, PEG™ (Programmable Event Generator) to monitor external conditions and support customer-defined, exception-based rules to meet your application requirements. PEG monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.



OVER-THE-AIR SERVICEABILITY

The LMU-1100 leverages CalAmp’s management and maintenance system, PULS™ (Programming, Updates, and Logistics System), for over-the-air configuration parameters, PEG rules, and firmware. This out-of-the-box, hands-free configuration and automatic post-installation upgrades can monitor unit health status across your customers’ fleets to identify issues before they become expensive problems.

Specifications
General

Communication Modes

UDP packet data and SMS

Location Technology

 50 channel GPS

Operating Voltage

12 and 24 volt vehicle systems

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, UDP packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1900

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900, 32.5 dBm
1800/1900, 29.3 dBm

CDMA/1XRTT:

850, 24 dBm; 1900, 23 dBm

HSPA/UMTS:

All bands, 23 dBm

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Comprehensive I/O
Digital Inputs

Inputs

2

Outputs

1 relay driver (150mA)

1-Wire® Interface

1

Status LEDs

GPS and cellular

Environmental

Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

6-32 VDC

Power Consumption

<2 mA @ 12V (deep sleep)
<10 mA @ 12V (sleep on network with SMS)
<20 mA @ 12V (sleep on network with GPRS)
<70 mA @ 12V (active standby)

Physical

Dimensions

2.5 x 3.125 x 0.875”, (63.5 x 80 x 23mm)

Weight

3 oz, (85g) (internal)

Connectors, SIM Access

Connection Type

Molded power and I/O harness

SIM Access

Internal

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Tie-wrap, adhesive, or Velcro
Screw mounting bracket
Features
Key Features

UDP and SMS messaging

Water resistant

Internal cellular and GPS antennas

Super sensitive GPS (-162 dBm)

Internal back-up 1000mAh battery

Ultra-low power sleep mode (<2mA)

3-axis accelerometer for motion sense and tilt

Voltage monitoring and low battery notification

2,000 buffered messages

10 built-in geo-fences

PEG™ exception-based rules

Automatic, over-the-air unit conguration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions

Temperature sensing via 1-wire protocol

Serial cable

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Serial Programming Pigtail (use with 134364-SER), 6″
Temperature Sensor: 1-bit Bus, 4 leads, splice in.
Buzzer and Cable Assy (use with 5C250 or 5C260), 2′
