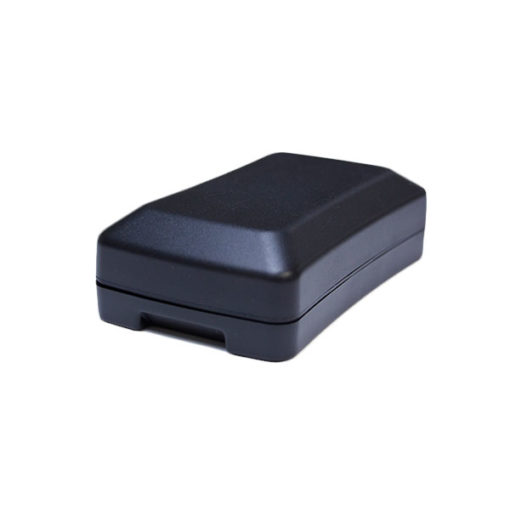

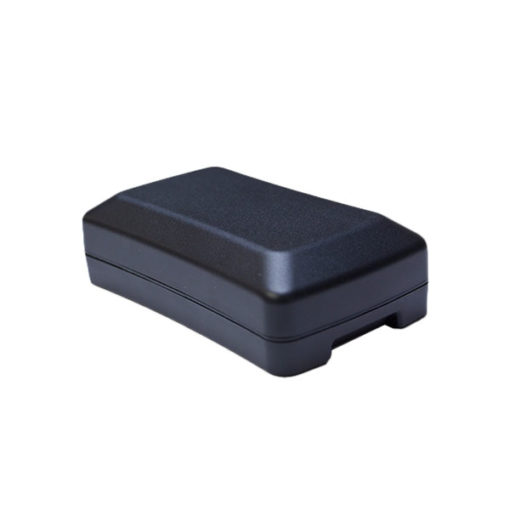

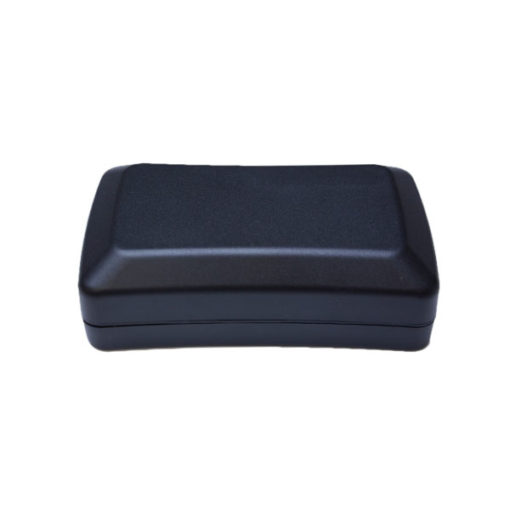

CalAmp ATU-620 Series

$77.50$128.75

The ATU 620 is a battery-operated asset tracking product designed for reliable, multi-year deployments. The ATU-620 is an ideal solution for managing assets that will be deployed for long periods without maintenance needs.

Clear

SKU: N/A Categories: , , , ,

Description

Overview

COMPETITIVE PRICE, COMPETITIVE TECHNOLOGY, COMPETITIVE EDGE

The sealed ATU-620 high-value tracking unit from CalAmp features a small size, superior GPS performance and replaceable AA Alkaline batteries. The ATU-620 is a complete asset tracking and communications device incorporating next-generation, super-sensitive GPS technology on GSM/GPRS, CDMA 1xRTT and HSPA cellular networks for installation inside any mobile asset. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the ATU 620 mountable virtually anywhere for easy, inexpensive installations. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The ATU-620 is designed to dramatically reduce cost and size while significantly improving field reliability.



FLEXIBILITY

The ATU-620 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.



OVER-THE-AIR SERVICEABILITY

The ATU-620 also leverages CalAmp’s industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules and firmware can all be updated over the air. PULS offers out-of-the-box, hands-free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers’ fleets to quickly identify issues before they become expensive problems.

Specifications
General

Communication Modes

GPRS/EDGE/HSPA and CDMA 1xRTT packet data, UDP and SMS

Location Technology

50 channel GPS

Operating Voltage

3.6 volt internal battery pack

GPS

Location Technology

50 channel GPS (with SBAS)
SBAS: WAAS, EGNOS, MSAS, GAGAN

Location Accuracy

2.0 meter CEP (with SBAS)

Tracking Sensitivity

-162dBm

Acquisition Sensitivity

-147dBm

AGPS Capable

Cellular

Data Support

SMS, GPRS, CDMA 1xRTT or HSPA packet data

Operating Bands (MHz)

GSM/GPRS:

850/900/1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

800(VI)/850(V)/900(VIII)/1700(IV)/1900(II)/2100(I)

Transmitter Power

GSM/GPRS:

850/900

1800/1900

CDMA/1XRTT:

850/1800

HSPA/UMTS:

All bands

HSPA Data Rates

5.6 Mbps upload/7.2 Mbps download

HSPA Fallback

EDGE/GPRS/GSM quad band
EDGE MCS1-MCS9
3GPP Release 6

Environmental
Temperature

-30º to +75º C (operating); -40º to +85º C (storage)

Humidity

95%RH @ 50º C non-condensing

Shock and Vibration

U.S. Military Standards 202G and 810F, SAE J1455

EMC/EMI

SAE J1113; FCC–Part 15B; Industry Canada

RoHS Compliant

Electrical

Operating Voltage

3.6V internal battery

Power Consumption

<100 µA @ 12V (deep sleep )
70 mA @ 12V (active standby)

Battery Pack

Field-Replaceable AA Batteries

Battery Options

3 or 6 1.5V AA alkaline cells

Physical

Dimensions

2.9 x 4.9 x 1.4” (74 x 124 x 36mm)

Weight

11 oz, (325g) (internal)

Connectors, SIM Access

SIM Access

Internal

Certifications
Fully certified FCC, CE, IC, PTCRB, Applicable Carriers
Mounting
Screw mount
Magnet mount
Features
Key Features

UDP and SMS messaging

Water resistant

Internal cellular and GPS antennas

Super sensitive GPS (-162 dBm)

Internal back-up 1000mAh battery

Ultra-low power sleep mode (<2mA)

3-axis accelerometer for motion sense and tilt

Voltage monitoring and low battery notification

2,000 buffered messages

10 built-in geo-fences

PEG™ exception-based rules

Automatic, over-the-air unit conguration on power-up (PULS™)

Over-the-air firmware download (PULS™)

Web-based device management (PULS™)

Optional Features/Functions
Temperature sensing via 1-wire protocol

Serial cable

Development Support Options
Customized hardware and software development available on request
Programming and Management Tools
Learn more about PEG and PULS, complimentary tools available to solution providers and channel partners for managing CalAmp devices.
Compatible Accessories
Serial Programming Cable: DE9 Female (DCE) to 5-pin Universal
Serial Programming Pigtail (use with 134364-SER), 6″

Additional information

Weight2 lbs
Carrier

GPRS, HSPA, Sprint, Verizon
